We are designing camera boards according to customer requirements. The camera designs are FPGA based. Our services include
- Consulting and Development of Requirements
- PCB desgin: Schematics, Layout, BOM
- Creation of Production Files: Gerber
- PCB manufacturing
- Firmwaredesign
Project Examples:

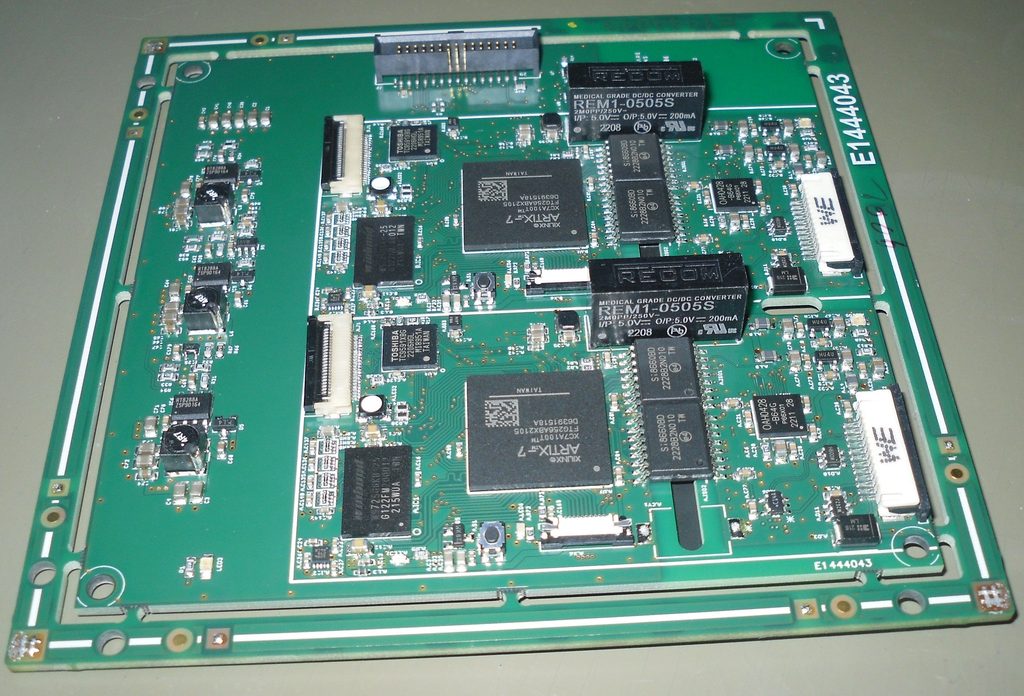

Dual Camera Board
Features:
- 2 independent cameras on one board
- compatible to image sensors Omnivision OCHFA10 and AMS NaneyeM
- LED driver
- electrical insulation 4000 VAC
- MIPI CSI output
- size: 10 cm x 10 cm

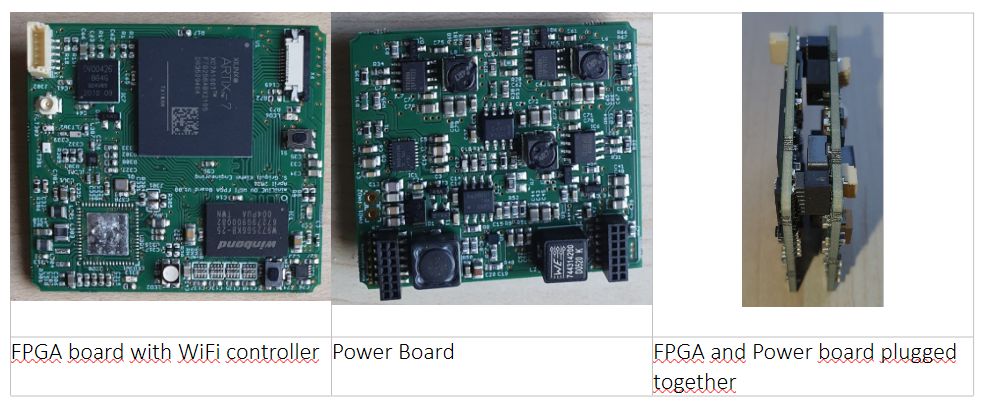

WiFi – Camera IPS-W01
Features:
- compatible to image sensor Omnivision OV6946
- video output via WiFi in Websocket protocol
- The camera acts as WiFi server
- video is accessible by WiFi compatible clients like notebooks and smart phones with browser like
Google Chrome and others which support HTML5, Javascript, Websocket and WebGL - driver for high power white LED
- battery powered
- compatible to two 3.7 V Lithium ion batteries, rechargeable by inductive Qi standard
- size of one board: 4 cm x 4.5 cm

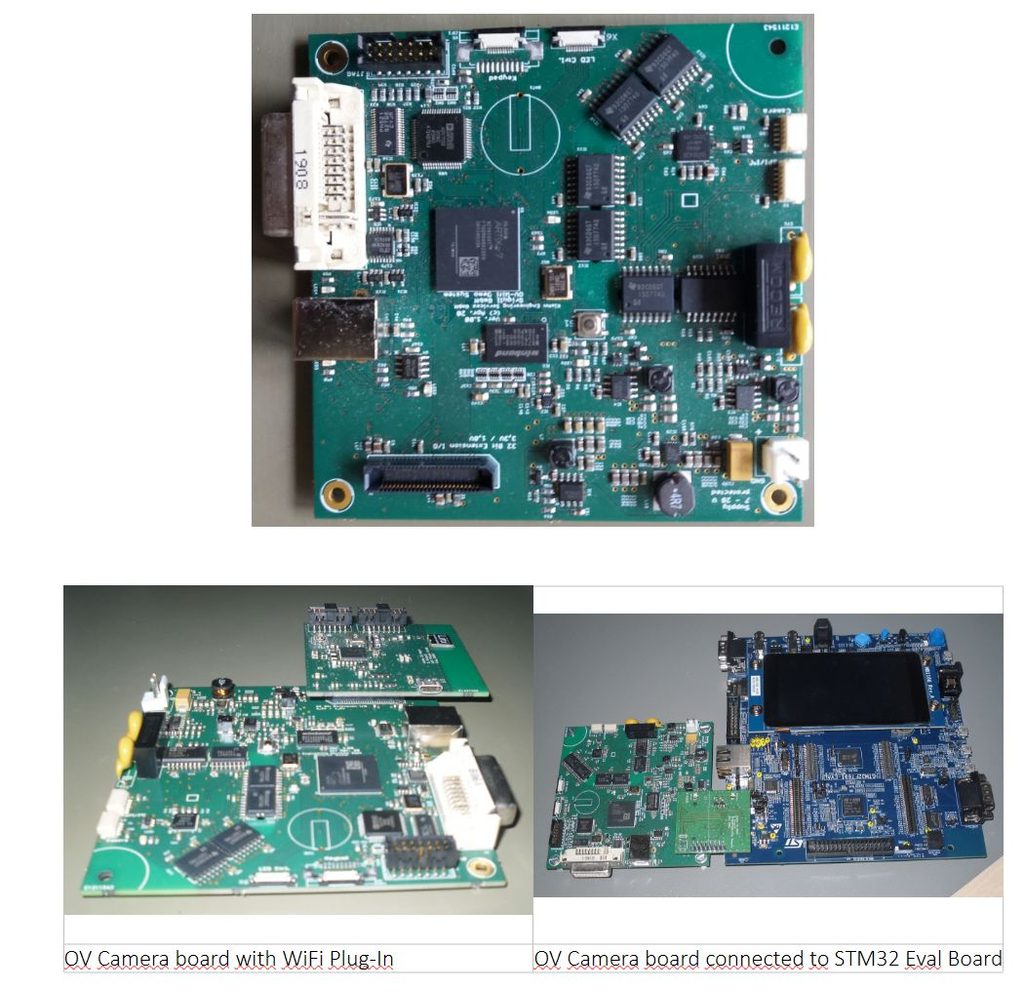

OV Camera Board 0090
Features:
- compatible to image sensors Omnivision OV6946 and OV6948
- video output DVI
- 9 Pin output for LED control
- 8 Pin input for control buttons
- connector for plugin boards, e.g. WiFi boards or brigdes to controller boards
- size of one board: 10 cm x 10 cm
