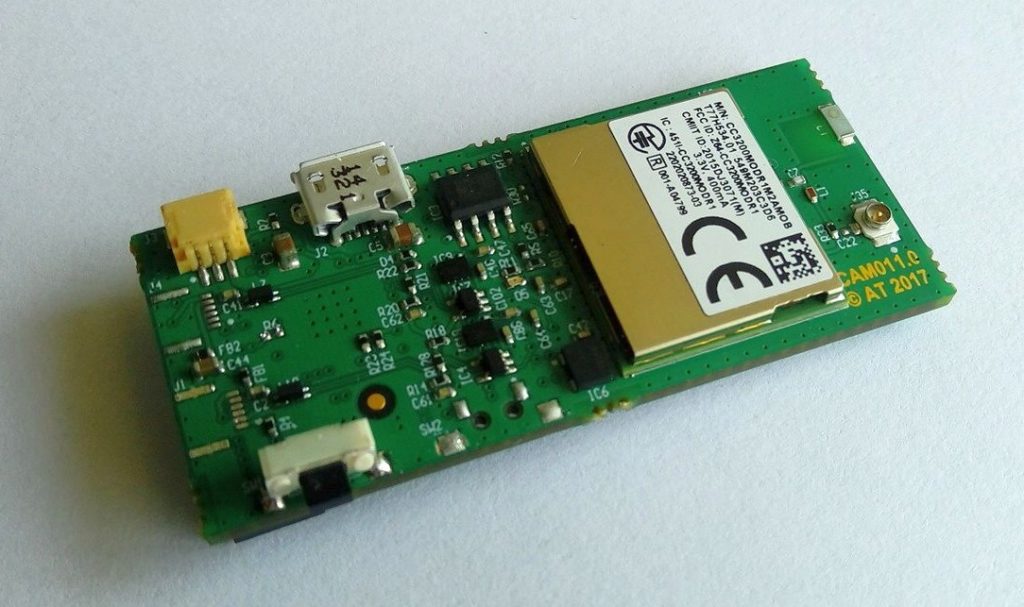

CAM01  WiFi Camera Module

CAM01

Key Features

- Wireless camera module for ams Naneye sensors using wireless LAN connectivity

- two image sensor interfaces

- LED driver up to 50 mA

- accessible by Wi-Fi compatible clients like notebooks and smart phones

- compatible to Google Chrome browser - no other application is required

- suitable to be battery powered

- board size 55 mm x 24 mm

-----------------------------------------------------------------------------------------------------

IPS-Z01  Image Processing System

ips-z01_klein

IPS-Z01



Key Features



- Powerful processing system based on Xilinx SoC ZYNQ-7000
- Image sensor interfaces

- 2x CMOSIS NanEye
-
2x CMOSIS NanEyeGS
-
2x MIPI/CSI2

- Video outputs

- TFT-LCD Display mit Touch Controller
-
1 GBit Ethernet
-
WLAN
- USB 2.0

- Extensions

- SD-Card Slot for memory cards
- SD-Card Slot for alternative WIFI modules
- USB 2.0 interface for debug/configuration
- optional: fiber optic light source available as add-on



realized in cooperation with
Ing.-Büro für fpga-logic-design Michael Heil
www.fpga-logic-design.de

-----------------------------------------------------------------------------------------------------

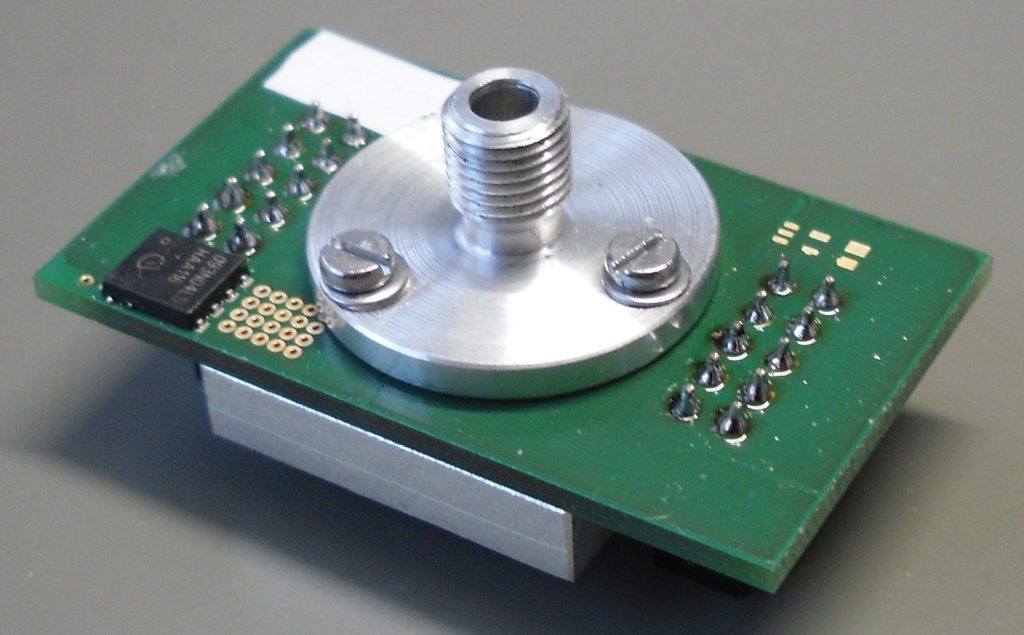

LED Module

LED module add-on for IPS-Z01  - suitable for F-SMA fiber connectors

Customized LED light sources can be realized.
